Thermoswitch
Temperature switches, temperature limiters or also thermal switches are used for the safe and multiple opening or closing of circuits. They usually consist of a bimetal, a spring washer, a plastic, Ceramic or metal housing and connection strands, wires or plugs. When the nominal switching temperature is reached, the bimetallic disc snaps into its Reverse situation. In the process, the contact system opens or closes and interrupts or thus contacts the electrical circuit. After reaching the temperature, the contact system automatically falls back to its normal operating Initial state back. Temperature switch with electrical latch must be disconnected from the power supply before resetting.
-

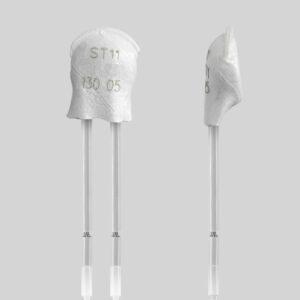

ST11 series
60°C – 250°C
AC 277V 6.3A | DC 24V 10A
Normally closed or normally open contact
automatically resetting
Plastic or metal housingDownload PDF (on request)
-
ST01 U1 series
60°C – 200°C
AC 250V 6.3A | DC 12V 10A
NC or NO contact
automatically resetting
Metal housing -
ST01 U2 Series
60°C – 200°C
AC 250V 6.3A | DC 12V 10A
Normally closed or normally open contact
automatically resetting
Metal housing -
ST01 U3 series
60°C – 200°C
AC 250V 6.3A | DC 12V 10A
Normally closed or normally open contact
automatically resetting
Metal housing -
ST01 U4 series
60°C – 155°C
AC 250V 6.3A | DC 12V 10A
Normally open or normally closed
Automatically resetting
Metal housing with epoxy coating -
ST01 U5 series
60°C – 155°C
AC 250V 6.3A | DC 12V 10A
Normally closed or normally open contact
automatically resetting
Metal housing PET insulated -
ST01 U6 series
60°C – 180°C
AC 250V 6.3A | DC 12V 10A
Normally open or normally closed
Automatic reset
Plastic housing -
ST01 U7 series
60°C – 180°C
AC 250V 6.3A | DC 12V 10A
Normally open or normally closed
Automatically resetting
Metal housing -
ST01 U8 series
60°C – 180°C
AC 250V 6.3A | DC 12V 10A
Normally closed or normally open contact
automatically resetting
Plastic housing -
ST01 U9 series
60°C – 180°C
AC 250V 6.3A | DC 12V 10A
Normally closed or normally open contact
automatically resetting
Plastic housing -
ST01HT series
205°C – 250°C
AC 250V 6.3A | DC 12V 10A
Opener
automatically resetting
Metal housing -
ST01 H Series (With PTC self-hold / Not reset automatically)
60°C – 200°C
AC 250V 6.3A | DC 12V 10A
Opener
PTC Self holding
Metal housing
Mylar-Nomex insulation -
ST01 Series (Triple)
60°C – 250°C
AC 250V 6.3A | DC 12V 10A
Opener
automatically resetting
Metal housing -

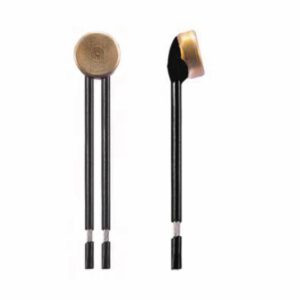

ST06 U1 series
60°C – 200°C
AC 250V 10A
Normally closed
Automatically resetting
Metal housing -
ST06 U2 series
60°C – 200°C
AC 250V 10A
Opener
automatically resetting
Metal housing -
ST06 U4 series
60°C – 155°C
AC 250V 10A
Opener
automatically resetting
Metal housing with epoxy coating -
ST06HT series
205°C – 250°C
AC 250V 10A
Opener
automatically resetting
Metal housing -
STH6 series
60°C – 200°C
AC 277V 13.5A … 35A
DC24V 60A
Opener
automatically resetting
Metal housing -
STY6 series star point thermal switch
60°C – 200°C
3x AC 400V 2.5A … 6.3A
Opener
automatically resetting
Metal housing
Star point temperature switch -
BW-E_M Epoxy Series
45°C – 160°C
AC 250V 2A | DC 24V 3A
Normally open or normally closed
Automatically resetting
Highly pressure-resistant housing 300N
Epoxy-coated -
BW-E_M Series
- 45°C – 160°C
- AC 250V 2A | DC 24V 3A
- Normally closed or normally open contact
- automatically resetting
- Pressure-resistant metal housing
- PET shrink sleeve
-
BW-ECP Series
- 45°C – 160°C
- AC 250V 2A | DC 24V 3A
- Opener
- automatically resetting
- Plastic housing
- Smallest temperature switch
-
BW-EOP Series
- 35°C – 160°C
- AC 250V 2A | DC 24V 3A
- Closer
- automatically resetting
- Plastic housing
- Smallest temperature switch
-
ST-22 series
50°C – 150°C
AC 250V 7A | DC 48V 3A
Normally closed
Automatically resetting
Plastic housing -
ST07 H Series (With PTC Self-hold / Not Reset Automatically)
50°C – 180°C
AC 270V 10A
Normally closed or normally open contact
PTC Self holding
Metal housing -
ST07 series
50°C – 180°C
AC 270V 10A | DC 16V 20A
Opener
automatically resetting
Metal housing -
TB11 Series
35°C – 160°C
AC 250V 11A | AC 115V / 13A
DC 24V 15A | DC 12V 16A
Normally closed contact, normally open contact, PTC latching action
Plastic or metal housing -
BW-B_M Series
45°C – 160°C
AC 250V 6A | DC 24V 6A
Normally open or normally closed
Automatically resetting
Metal housing -
BW-B_ME Series
45°C – 160°C
AC 250V 6A | DC 24V 6A
Normally open or normally closed
Automatically resetting
Metal housing
Epoxy resin insulation -
BW-B_P Series
45°C – 160°C
AC 250V 6A | DC 24V 6A
Normally open or normally closed
Automatically resetting
Plastic housing -
BW-BCC Series
45°C – 160°C
AC 250V 6A | DC 24V 6A
Normally open or normally closed
Automatically resetting
Ceramic housing -
BW-D series
45°C – 150°C
AC 250V 6A | DC 24V 6A
Normally open or normally closed
Automatically resetting
Plastic or metal housing
Gold contacts for very low currents -
UK series
50°C – 145°C
AC 250V 2A | DC 24V 1A
Normally closed
Automatically resetting
Plastic housing
