NTC thermistors
Positive temperature coefficient (PTC) thermistors have a negative temperature coefficient (TC) and are therefore often referred to as NTC thermistors (NTC = Negative Temperature Coefficient). They consist of mixtures of ceramic materials, the composition of which determines their properties. Resistance values ranging from a few ohms to several megaohms and wide operating temperature ranges from -50°C to +500°C are possible. If the ambient temperature of the PTC thermistor changes, its resistance decreases. This behavior can be utilized, for example, for temperature sensing or temperature compensation.
-
AT52D NTC Thermistor Series
NTC thermistor
-40°C … +125°C
R25: 1kΩ … 1000kΩ ±1% … ±5%
Ø 2.8 or 3.3 x 6mm epoxy encapsulated
radial stranded wire connections -

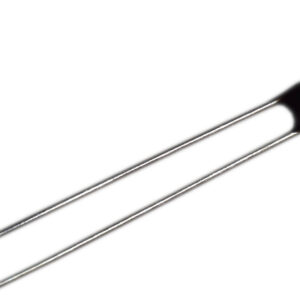

AT52E NTC Thermistor Series
NTC thermistor
-40°C … +125°C
R25: 1kΩ … 1000kΩ ±1% … ±5%
Ø 2.8 x 4mm epoxy encapsulated
radial wire connections -
AT58 NTC Thermistor Series
NTC thermistor
-40°C … +250°C
R25: 0.1Ω … 5000kΩ ±1% … ±5%
DO-35 glass housing
axial wire connections -

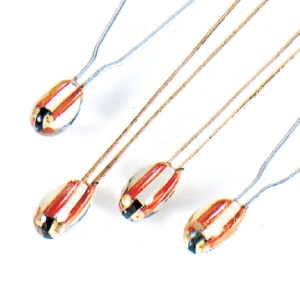

AT58D NTC thermistor series
NTC thermistor
-40°C … +300°C
R25: 2kΩ … 5000kΩ ±1% … ±5%
Glass housing
radial wire connections
