Thermal fuses in axial design
-
V Series
Rated Functioning Temp. (Tf): 76 – 150°C
Rated Current (Ir): 1A (2.5A / 4A)
Rated Voltage (Ur): AC 250V | DC 60V | DC 50V -
H series
Rated Functioning Temp. (Tf): 76 – 221°C
Rated Current (Ir): 2A (1A)
Rated Voltage (Ur): AC 250V | AC 125V | DC 60V | DC 50V -
B Series
Rated Functioning Temp. (Tf): 76 – 221°C
Rated Current (Ir): 3A
Rated Voltage (Ur): AC 250V | AC 125V | DC 60V | DC 50V -
SF Series
Rated Functioning Temp. (Tf): 115 – 139°C
Rated Current (Ir): 3A
Rated Voltage (Ur): DC 60V -
C Series
Rated Functioning Temp. (Tf): 76 – 221°C
Rated Current (Ir): 5A | 6A | 7A | 8A | 8.5A | 10A
Rated Voltage (Ur): AC 250V | AC 125V | DC 60V | DC 50V -
HS Series
Rated Functioning Temp. (Tf): 125 – 145°C
Rated Current (Ir): 5A
Rated Voltage (Ur): AC 500V | DC 200V -
U Series
Rated Functioning Temp. (Tf): 76 – 221°C
Rated Current (Ir): 10A
Rated Voltage (Ur): AC 250V | DC 60V -
M Series
Rated Functioning Temp. (Tf): 139°C
Rated Current (Ir): 9A
Rated Voltage (Ur): DC 60V -
BF Series
Rated Functioning Temp. (Tf): 73 – 257°C
Rated Current (Ir): 10A
Rated Voltage (Ur): AC 250V -
HP Series
Rated Functioning Temp. (Tf): 125 – 145°C
Rated Current (Ir): 10A
Rated Voltage (Ur): AC 500V | DC 200V -
RS Series
Rated Functioning Temp. (Tf): 72 – 263°C
Rated Current (Ir): 10A
Rated Voltage (Ur): AC 250V -
DF Series
Rated Functioning Temp. (Tf): 50 – 280°C
Rated Current (Ir): 15A
Rated Voltage (Ur): AC 250V -
HN series
Rated Functioning Temp. (Tf): 125 – 145°C
Rated Current (Ir): 15A
Rated Voltage (Ur): AC 690V | DC 200V -
R Series
Rated Functioning Temp. (Tf): 76 – 221°C
Rated Current (Ir): 15A
Rated Voltage (Ur): AC 250V | DC 60V -
RT Series
Rated Functioning Temp. (Tf): 72 – 263°C
Rated Current (Ir): 15A/16A
Rated Voltage (Ur): AC 250V -
G5 series
Rated Functioning Temp. (Tf): 72 – 240°C
Rated Current (Ir): 20A
Rated Voltage (Ur): AC 250V -

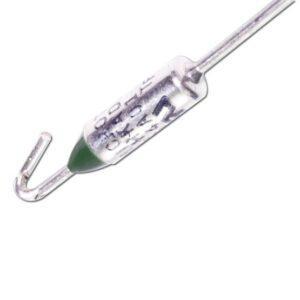

G8 series
Rated Functioning Temp. (Tf): 72 – 240°C
Rated Current (Ir): 25A
Rated Voltage (Ur): AC 250V -
P-1A-F series
Rated Functioning Temp. (Tf): 76 – 223°C
Rated Current (Ir): 1A
Rated Voltage (Ur): AC 250V -
P-F series
Rated Functioning Temp. (Tf): 76 – 223°C
Rated Current (Ir): 2A
Rated Voltage (Ur): AC 250V -
P-3A-F series
Rated Functioning Temp. (Tf): 84 – 150°C
Rated Current (Ir): 3A
Rated Voltage (Ur): AC 250V -
P-5A-F series
Rated Functioning Temp. (Tf): 84 – 150°C
Rated Current (Ir): 5A
Rated Voltage (Ur): AC 250V
