Thermosicherungen in axialer Bauform

  • V Serie

    Rated Functioning Temp. (Tf): 76 – 150°C
    Rated Current (Ir): 1A (2.5A / 4A)
    Rated Voltage (Ur): AC 250V | DC 60V | DC 50V

    Download PDF

    Online-Shop

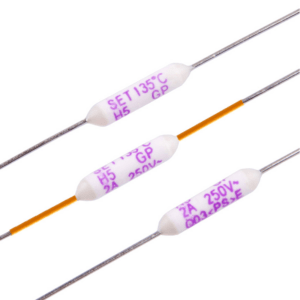

  • H Serie

    Rated Functioning Temp. (Tf): 76 – 221°C
    Rated Current (Ir): 2A (1A)
    Rated Voltage (Ur): AC 250V | AC 125V | DC 60V | DC 50V

    Download PDF

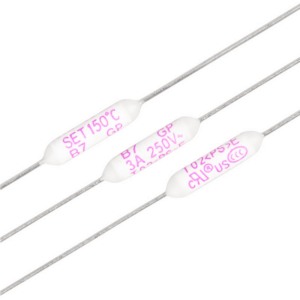

  • B Serie

    Rated Functioning Temp. (Tf): 76 – 221°C
    Rated Current (Ir): 3A
    Rated Voltage (Ur): AC 250V | AC 125V | DC 60V | DC 50V

    Download PDF

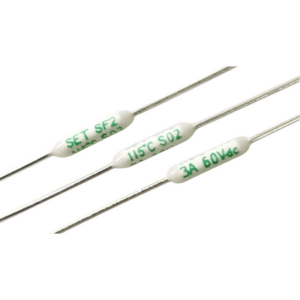

  • SF Serie

    Rated Functioning Temp. (Tf): 115 – 139°C
    Rated Current (Ir): 3A
    Rated Voltage (Ur): DC 60V

    Download PDF

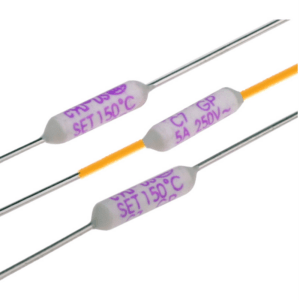

  • C Serie

    Rated Functioning Temp. (Tf): 76 – 221°C
    Rated Current (Ir): 5A | 6A | 7A | 8A | 8.5A | 10A
    Rated Voltage (Ur): AC 250V | AC 125V | DC 60V | DC 50V

    Download PDF

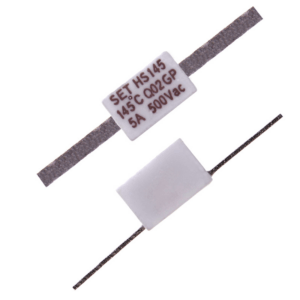

  • HS Serie

    Rated Functioning Temp. (Tf): 125 – 145°C
    Rated Current (Ir): 5A
    Rated Voltage (Ur): AC 500V | DC 200V

    Download PDF

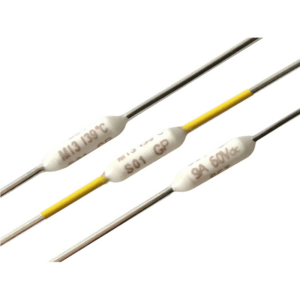

  • M Serie

    Rated Functioning Temp. (Tf): 139°C
    Rated Current (Ir): 9A
    Rated Voltage (Ur): DC 60V

    Download PDF

  • BF Serie

    Rated Functioning Temp. (Tf): 73 – 257°C
    Rated Current (Ir): 10A
    Rated Voltage (Ur): AC 250V

    Download PDF

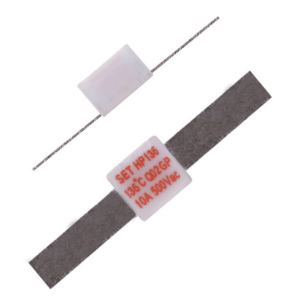

  • HP Serie

    Rated Functioning Temp. (Tf): 125 – 145°C
    Rated Current (Ir): 10A
    Rated Voltage (Ur): AC 500V | DC 200V

    Download PDF

  • RS Serie

    Rated Functioning Temp. (Tf): 72 – 263°C
    Rated Current (Ir): 10A
    Rated Voltage (Ur): AC 250V

    Download PDF

  • DF Serie

    Rated Functioning Temp. (Tf): 50 – 280°C
    Rated Current (Ir): 15A
    Rated Voltage (Ur): AC 250V

    Download PDF

    Online-Shop

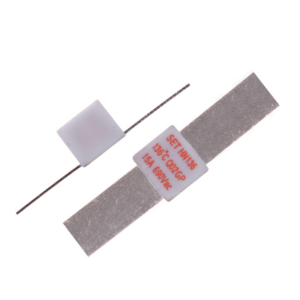

  • HN Serie

    Rated Functioning Temp. (Tf): 125 – 145°C
    Rated Current (Ir): 15A
    Rated Voltage (Ur): AC 690V | DC 200V

    Download PDF

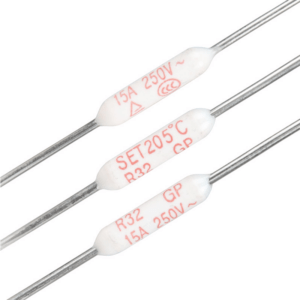

  • R Serie

    Rated Functioning Temp. (Tf): 76 – 221°C
    Rated Current (Ir): 15A
    Rated Voltage (Ur): AC 250V | DC 60V

    Download PDF

  • RT Serie

    Rated Functioning Temp. (Tf): 72 – 263°C
    Rated Current (Ir): 15A/16A
    Rated Voltage (Ur): AC 250V

    Download PDF

  • G5 Serie

    Rated Functioning Temp. (Tf): 72 – 240°C
    Rated Current (Ir): 20A
    Rated Voltage (Ur): AC 250V

    Download PDF

  • G8 Serie

    Rated Functioning Temp. (Tf): 72 – 240°C
    Rated Current (Ir): 25A
    Rated Voltage (Ur): AC 250V

    Download PDF

  • P-1A-F Serie

    Rated Functioning Temp. (Tf): 76 – 223°C
    Rated Current (Ir): 1A
    Rated Voltage (Ur): AC 250V

    Download PDF

    Online-Shop

  • P-F Serie

    Rated Functioning Temp. (Tf): 76 – 223°C
    Rated Current (Ir): 2A
    Rated Voltage (Ur): AC 250V

    Download PDF

    Online-Shop

  • P-3A-F Serie

    Rated Functioning Temp. (Tf): 84 – 150°C
    Rated Current (Ir): 3A
    Rated Voltage (Ur): AC 250V

    Download PDF

    Online-Shop

  • P-5A-F Serie

    Rated Functioning Temp. (Tf): 84 – 150°C
    Rated Current (Ir): 5A
    Rated Voltage (Ur): AC 250V

    Download PDF

    Online-Shop
