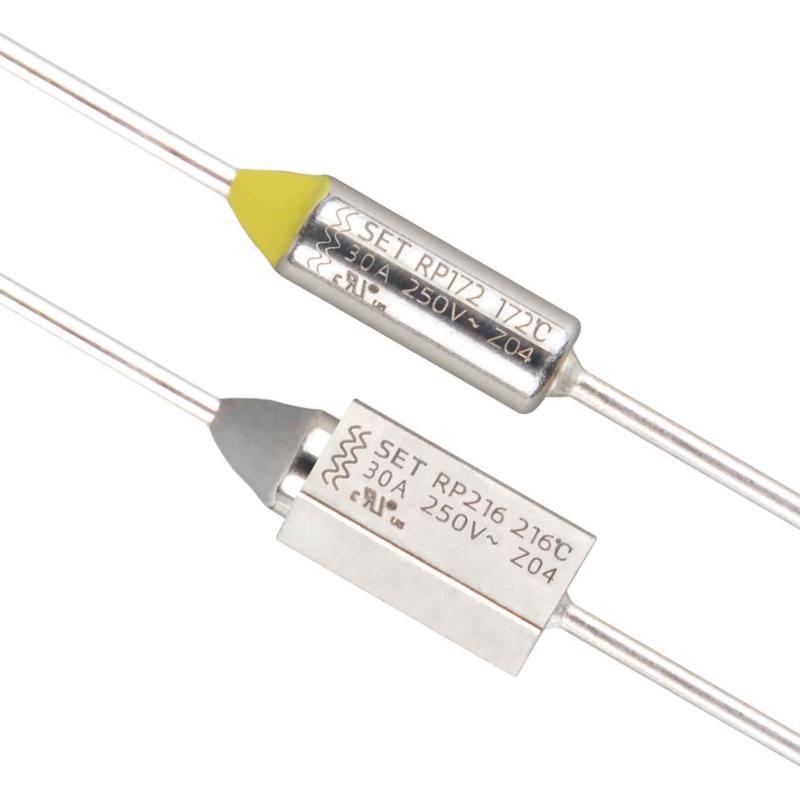

RP series – High-current thermal fuse for maximum safety
The perfect solution for demanding applications – now with 30 A load capacity
The RP series from Alpha Therm offers robust and reliable fuse protection for high-performance applications. With a rated current of 30 A at 250 VAC, it is the ideal choice for protecting high-performance appliances, industrial equipment and vehicle technology.
Main features:
✅ Highest current carrying capacity: Up to 30 A for maximum safety
✅ Wide temperature range: switch-off temperatures from 72 °C to 263 °C
✅ Organic thermo-pellet technology: Precise and reliable tripping
✅ Non-resettable: Unique protective function for permanent safety
✅ Low resistance: Reduces heat generation and energy loss
✅ Metal housing: Robust construction for extreme conditions
✅ Environmentally friendly : RoHS & REACH compliant
Typical applications:
🔹 High-performance household appliances (e.g. ovens, heaters, washing machines)
🔹 Industrial and commercial applications with high current loads
🔹 Automotive electronics, battery management and electric drives
Individual customizations:
- Different switch-off temperatures for specific requirements
- Different cable lengths and connection types available
- Customizable housing shapes for various installation situations
The RP series offers maximum performance and safety for demanding applications. Contact us for more information or sample requests!
