Mechanical components
Cost-effective stainless steel parts for sensor applications, with over 80 deep-drawing dies available
At our OEM and ODM factory, we offer high-quality stamped, deep-drawn, turned, and milled stainless steel parts for various applications, such as sensor probes, sensor housings, sensor protection tubes, and thermometer protection tubes. Our focus is on outstanding quality and versatility in the manufacture of sensor-related components.
Our expertise covers sensor probes, sensor housings, thermometer protection tubes, sensor sheaths and protection tubes, as well as deep-drawn parts, sheet metal parts, stamped parts, metal fabrication, machined parts, welded parts, laser-cut parts, assembled parts, and bent parts. We offer a wide range of materials, including stainless steel, carbon steel, copper, brass, and aluminum. Various surface treatments—including degreasing, cleaning, heat treatment, electroplating, nickel plating, chrome plating, polishing, and grinding—optimize the products.
Our production process involves no additional tooling costs and includes deep drawing, welding, machining, and more. Quality tests are conducted to verify dimensions, surface finish, leak tightness, and material. As part of our commitment to excellence, we serve every customer with dedication, efficiency, and the highest quality.
Our wide range of standard sizes can be customized to meet customer requirements. As a special offering, we have over 80 thermoforming dies available, which generally eliminates the need for tooling costs. Our expertise as an OEM and ODM manufacturer spans a wide variety of sensor-related products, including temperature sensor protection tubes. These cylindrical tubes protect the temperature sensor chip and are available in various designs, including flat, round, and pointed tips.
Materials such as stainless steel, copper, brass, aluminum, and ceramic are used. The length typically ranges from 10 mm to 500 mm, the outer diameter from 3 mm to 10 mm, and the wall thickness from 0.2 mm to 0.5 mm. Various shapes are available, including straight tubes, tubes with brackets, bent tubes, tubes with brass rings, spherical, machined nuts with tubes, and machined parts. Surface treatment methods include polishing, cleaning, and electroplating.
-
Deep-drawn tubes for temperature sensors
Material: 1.4301/1.4404
Diameter: from 3 – 8mm
Length: 25 – 100mm
As a rule, there are no tool costs for standard sleeves.
Standard deep-drawn sleeves can be found in the data sheet
Other sleeve sizes on request -

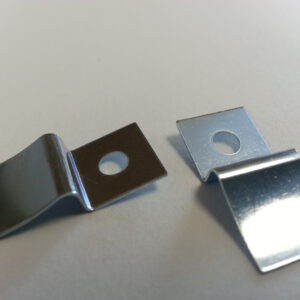

Mounting bracket CB.00.34.000
Spring band steel 1.4310
Clamping height approx. 2.4 – 3.5mm
Suitable temperature switches for BW-D series and BW-E series, as well as a variety of other components and parts -
Mounting bracket CB.00.35.000 & CB.00.35.110
Spring band steel C75
Clamping height approx. 2.4 – 4.2 mm
Suitable temperature switches for UK series, ST series, BW-B series and a wide range of other components and parts
