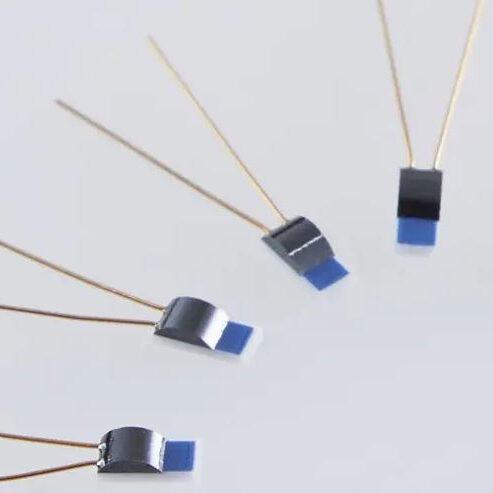

CRZE series
-70°C … +350°C (+400°C)
Pt100, Pt1000
F0.6 (cl. 2B) … F0.1 (cl. 1/3B)
Related products
-
CRAG-1216
1.2 x 1.6 mm
-200°C … +600°C
Pt100, Pt200, Pt500, Pt1000
F0.3 (cl. B) … F0.03 (cl. 1/10B)
TCR 3850 ppm/K (3810 , 3750 etc.)
Other wire lengths, wire material or insulation of the connecting wires on request -
CRTO92-1000-B – Alternative to YAGEO/Heraeus 32 209 220 and 32 209 226
CRTO92-1000-B
Pt1000 Class B
Application range -50°C…+150°C
Tolerance B (F 0.3) -50°C…+150°C
Housing TO92 4.1×4.2×2.55mm
Wire tinned 0.3×0.5×12.5mm
Pitch 2.54mmAlternative to YAGEO/Heraeus 32 209 220 and 32 209 226
-
CRZ Series
-70°C … +400°C (+500°C)
Pt100, Pt500, Pt1000
F0.6 (cl. 2B) … F0.1 (cl. 1/3B) -
CRAG-2023-1000-B(Ni)-TCR3750
CRAG-2023-1000-B(Ni)-TCR3750
Pt1000 Class B
Application range -200°C…+600°C
Tolerance B (F 0.3) -70°C…+600°C
Dimensions 2.0 x 2.3 x 1.1mm
Connection: Nickel Ø 0.25x10mm
Special: TCR 3750ppm/KOther wire lengths, wire material or insulation of the connecting wires on request
