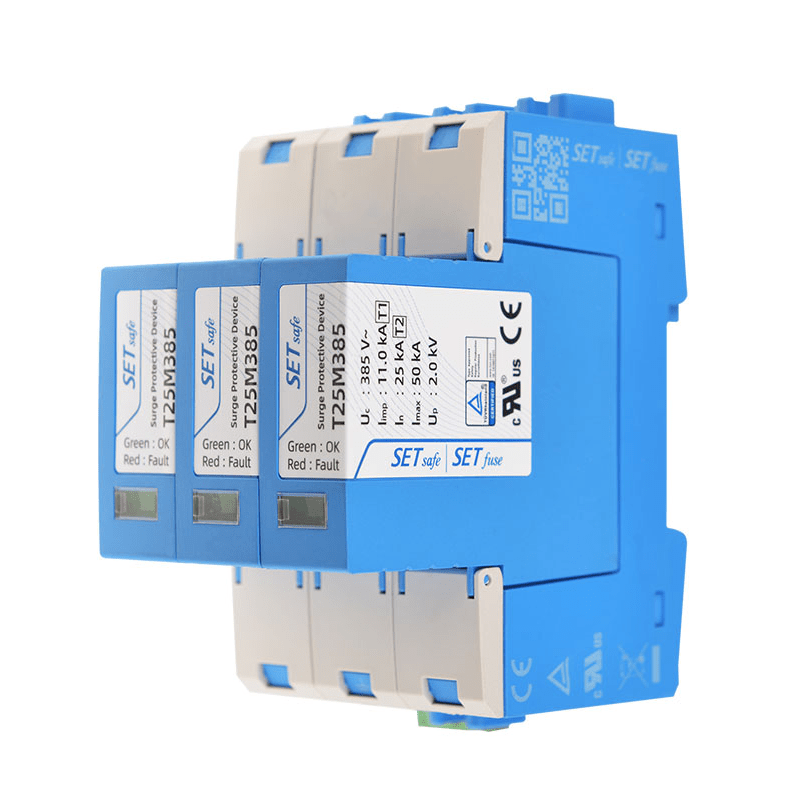

SD25TxxxL306, T1+T2
Uc: 150 … 680 VAC
Iimp (10/350μs): 5 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode: 3+0 (L – PE)
Ähnliche Produkte
SD25TxxxA203, T1+T2
Uc: L-N: 150 … 385 VAC
Iimp (10/350μs): 11 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode: 1+1 (L–N, N-PE)
SD25TxxxA301/L302
Uc: 150 … 385 VAC
Iimp (10/350μs): 11.0 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode:
2+1 (L1 – N， L2 – N，N – G)
SD20S series, T2
Uc: L-N: 385 VAC
In (8/20 μs): 20 kA
Imax (8/20 μs): 40 kA
Protection Mode:
3+1 (L-N, N-PE)
SD25TxxxA404, T1+T2
Uc: L-N: 150 … 385 VAC
Iimp (10/350μs): 11 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode:
3+1 (L–N, N-PE)
