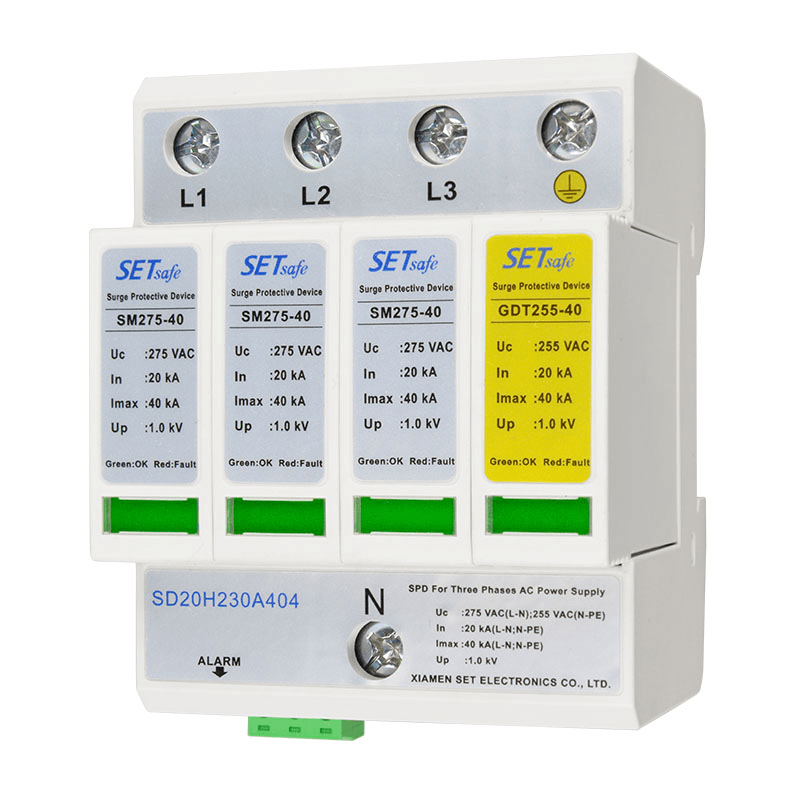

SD20H230A404, T2
Uc: L-N: 275 VAC
In (8/20 μs): 20 kA
Imax (8/20 μs): 40 kA
Up: 1.0 kV
Protection Mode:
3+1 (L–N, N-PE)
