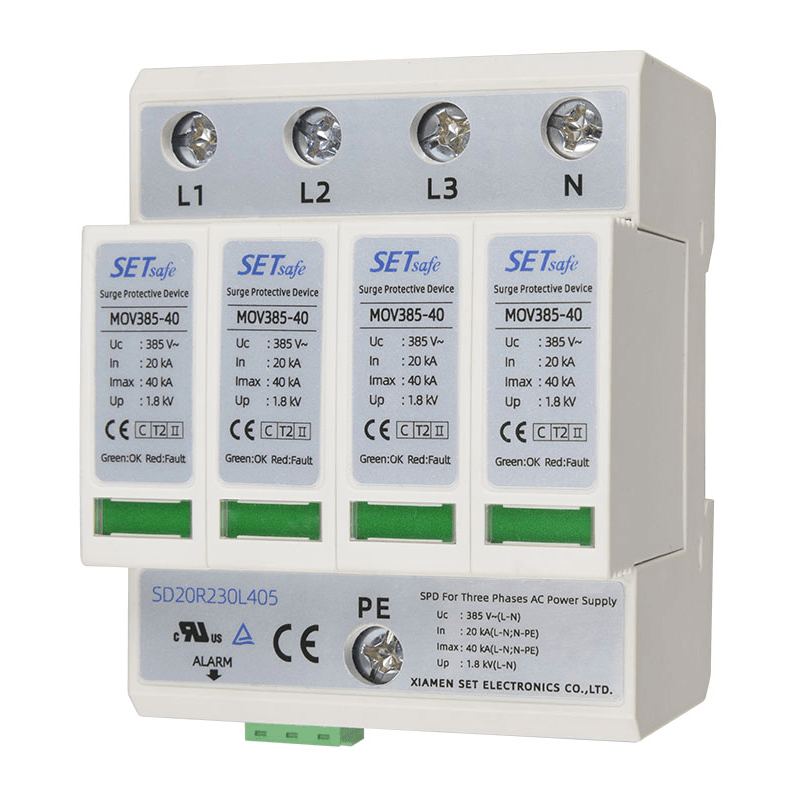

SD20/30R series, T2
Uc: 385 VAC
In (8/20μs): 20/30 kA
Imax (8/20μs): 40/60 kA
Protection Mode: 4+0 (L/N-PE)
Ähnliche Produkte
-
SD25TxxxL201
Uc: 150 … 320 VAC
Iimp (10/350μs): 11.0 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode:
2+0 (L1 – G,L2 – G) -
SD25TxxxA404, T1+T2
Uc: L-N: 150 … 385 VAC
Iimp (10/350μs): 11 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode:
3+1 (L–N, N-PE) -
SD20/30R series, T2
Uc: L-N: 385 VAC, N-PE: 255 VAC
In (8/20μs): 20/30 kA
Imax (8/20μs): 40/60 kA
Protection Mode: 3+1 (L-N, N-PE) -
SD25TxxxL405, T1+T2
Uc: 150 … 680 VAC
Iimp (10/350μs): 5 … 12.5 kA
In (8/20μs): 25 kA
Imax (8/20μs): 50 kA
Protection Mode: 4+0 (L/N-PE)
