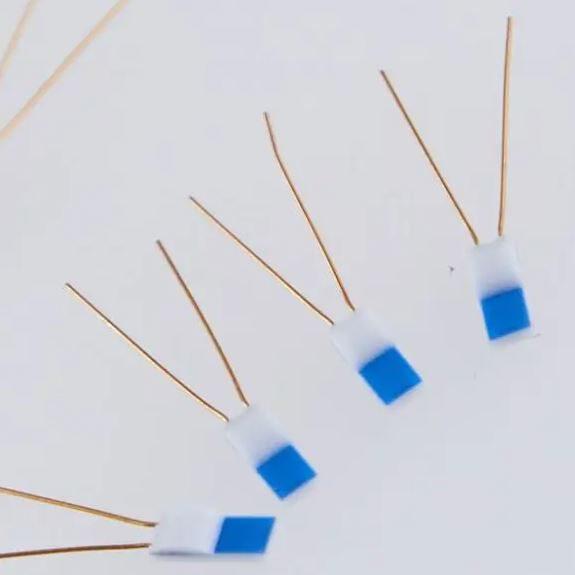

CRZ Series
-70°C … +400°C (+500°C)
Pt100, Pt500, Pt1000
F0.6 (cl. 2B) … F0.1 (cl. 1/3B)
Related products
-
CRX Series – Platinum temperature sensor in ceramic housing
-200°C … +600°C
Pt100, Pt200, Pt500, Pt1000
F0.3 (cl. B) … F0.03 (cl. 1/10B)
TCR 3850ppm/K (3810, 3750 etc.)
On request other wire lengths, wire material or insulation of the connecting wires -
CRTO92-100-B – Alternative to YAGEO/Heraeus 32 209 210 and 32 209 215
CRTO92-100-B
Pt100 Class B
Application range -50°C…+150°C
Tolerance B (F 0.3) -50°C…+150°C
Housing TO92 4.1×4.2×2.55mm
Wire tinned 0.3×0.5×12.5mm
Pitch 2.54mmAlternative to YAGEO/Heraeus 32 209 210 and 32 209 216
-
CRTO92-1000-B – Alternative to YAGEO/Heraeus 32 209 220 and 32 209 226
CRTO92-1000-B
Pt1000 Class B
Application range -50°C…+150°C
Tolerance B (F 0.3) -50°C…+150°C
Housing TO92 4.1×4.2×2.55mm
Wire tinned 0.3×0.5×12.5mm
Pitch 2.54mmAlternative to YAGEO/Heraeus 32 209 220 and 32 209 226
-
CRER / CREBR Series
-70°C … +500°C
Pt100, Pt1000
F0.3 (Class B)
Reverse welded
CREBR with metallized back
